The SolaMaster Series is a versatile line of tubular daylighting devices that captures natural light at the rooftop and transfers it into building interiors where daylighting has rarely been possible. These systems feature patented optical technologies that deliver highly predictable light levels, allowing them to be used in commercial daylighting design applications similar to traditional lighting equipment. They are ideal for spaces with ceiling heights ranging from 8 ft. to 20 ft.
TECHNOLOGY
Capture
Raybender® 3000
Technology
A patented daylight-capturing dome lens that:
- Redirects low-angle sunlight for maximum light capture
- Rejects overpowering summer midday sun light
- Provides consistent daylighting throughout the day
- Available with 750 DS dome only
LightTracker™
Reflector
An innovative in-dome reflector that:
- Redirects low-angle winter sunlight for maximum light capture
- Increases light input for greater light output
- Delivers unsurpassed year-round performance
- * 330 DS is available for dome
Transfer
Spectralight®
Infinity Tubing
Tubing made of the world's most reflective material that:
- Delivers 99.7% * specular reflectivity for maximum sunlight transfer
- Provides the purest color rendition possible so colors are truer, brighter
- Allows for run lengths over 50 feet to deliver daylight to lower floors
Deliver
Engineered Light Diffusion
Optical lenses and lighting control options combine to:
- Create a location-specific, controlled visual effect
- Provide visual comfort
- Deliver superior diffusion
- Provide light control with the Daylight Dimmer, an ideal add-on for adjusting daylight levels at the touch of a button
PRODUCT OPTIONS
330 DS Open Ceiling The SolaMaster 330 DS is designed to maximize light output at any time of day. It effectively captures low-angle rays in the morning and late afternoon, and collects high-angle rays at midday for powerful performance. It is ideal for lighting expansive spaces with open ceilings where variances in light levels don't create an issue for occupants.
- Tube size ≈ 21 in. (530 mm)
- Potential tube length ≈ 50 ft. (15 m)
Applications
- Warehouses, production facilities
- Shopping centers
- Airports
- Sports facilities
330 DS Closed Ceiling The SolaMaster 330 DS is designed to maximize light output at any time of day. It effectively captures low-angle rays in the morning and late afternoon, and collects high-angle rays at midday for powerful performance. It is ideal for lighting expansive spaces with dropped ceilings where variances in light levels don't create an issue for occupants.
- Tube size ≈ 21 in. (530 mm)
- Potential tube length ≈ 50 ft. (15 m)
Applications
- Large offices
- Lobbies
- Atriums
750 DS Open CeilingThe SolaMaster 750 DS is designed to deliver consistent light output throughout the day. It effectively captures low-angle rays in the morning and late afternoon, but rejects high-angle rays at midday to prevent glare, overlighting and overheating. Perfect for large spaces with open ceilings where a consistent level of light is required during typical work hours.
- Tube size ≈ 21 in. (530 mm)
- Potential tube length ≈ 50 ft. (15 m)
Applications
- Lobbies
- The exhibition grounds
- Showrooms
750 DS Closed CeilingThe SolaMaster 750 DS is designed to deliver consistent light output throughout the day. It effectively captures low-angle rays in the morning and late afternoon, but rejects high-angle rays at midday to prevent glare, overlighting and overheating. Perfect for large spaces with dropped ceilings where a consistent level of light is required during typical work hours.
- Tube size ≈ 21 in. (530 mm)
- Potential tube length ≈ 50 ft. (15 m)
Applications
- The exhibition grounds
- Museums
- Offices
ACCESORRIES
Transition Box
The SolaMaster® Series features a patented transition box that seamlessly converts the round tubing to a square diffuser. The transition box easily fits into standard commercial ceiling grids.
Daylight Dimmer Switch Kit
The Daylight Dimmer Switch Kit includes a Double-Pole Double-Throw (DPDT) switch, wall plate and 15 ft. (4.5 m) of cable. One switch can control multiple Daylight Dimmers simultaneously.
Daylight Dimmer
At times, it may be necessary to reduce the amount of bright daylight in a building—during a presentation, for instance. The optional Daylight Dimmer uses a patented butterfly baffle and a convenient wall-mounted switch to allow for simple and easy adjustments to room daylight illumination levels.
Spectralight® Infinity 0-90 Degree Extension Tube
Provides superior performance that flexible tubes can't match. An innovative design with three built-in 30 degree angle adapters gives you the flexibility to install around obstacles. Available in 23 in. (580 mm) length.
- 330 DSO/330 DSC
- 750 DSO/750 DSC
DIFFUSER OPTIONS

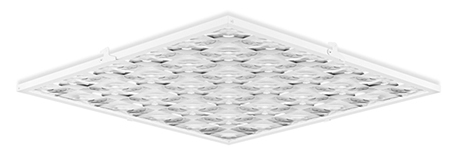

OptiView® Diffuser
The innovative design of our square OptiView Diffuser features individual Fresnel lenses that offer a unique view of the sky above while providing unrivaled light diffusion and vertical surface illumination. Available for use on closed ceiling models.

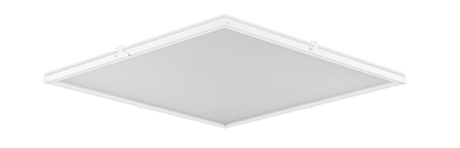

Prismatic Diffuser
Perfect for replicating the look and style of traditional troffers, the rectangular Prismatic Diffuser blends into virtually any design for a bright diffusion of natural light. Available for use on closed ceiling models.

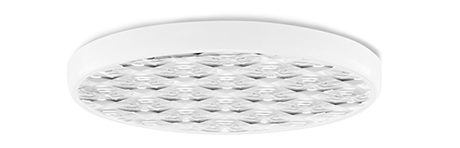

OptiView® Difüzör with White Trim
The innovative design of our circular OptiView Diffuser features individual Fresnel lenses that offer a unique view of the sky above while providing unrivaled light diffusion and vertical surface illumination. The diffuser snaps on to the bottom tube for easy installation. Available for use on open ceiling models.

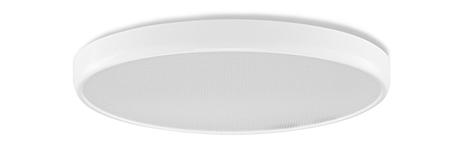

Prismatic Difüzör with White Trim
Perfect for replicating the look and style of traditional troffers, the circular Prismatic Diffuser blends into virtually any design for a bright diffusion of natural light. The diffuser snaps on to the bottom tube for easy installation. Available for use on open ceiling models.
