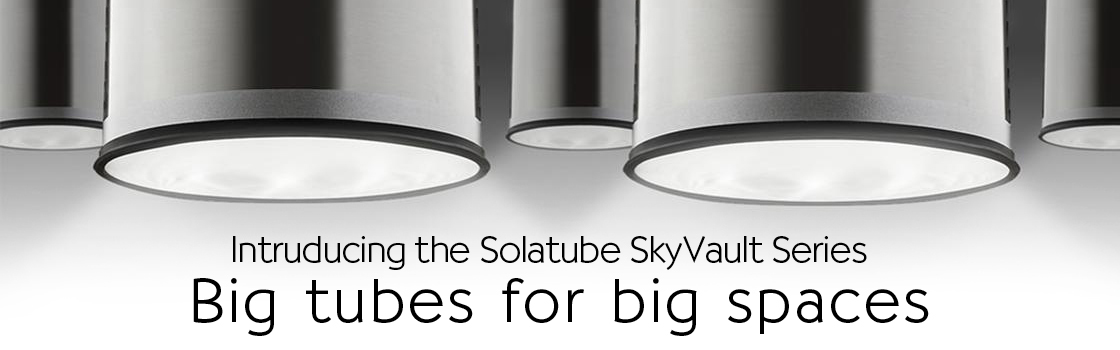

The SkyVault Series is a groundbreaking groundbreaking line of tubular daylighting devices designed specifically for large volume spaces with high ceilings like airports, convention centers, lobbies, warehouses, manufacturing facilities, and retail centers. The core of the new SkyVault Series is the Solatube M74 DS Daylighting System, which captures natural light at the roof level, and transfers it indoors using the world's most reflective material. The base unit provides a 74 cm opening to the sky, allowing more light to enter an area for higher daytime illuminance and / or greater spacing between units with fewer amount of roof penetrations. The SkyVault Series gives building designers a Solatube daylighting solution that delivers maximum output while minimizing impact on the building envelope and significantly reducing installation costs.
TECHNOLOGY
Capture
Sealed, Pre-assembled Dome Assembly
A high-impact, UV-inhibiting dome assembly that:
- Maximizes light collection for greater daytime illumination
- Prevents entry of air and moisture to preserve system integrity
- Provides exceptional thermal efficiency for comfortable interior temperatures
- Readily accepts collection technology add-ons that enhance daylight capture
- Ensures quick and easy installation that is airtight
Transfer
Spectralight® Infinity Tubing
Tubing made of the world's most reflective material that:
- Delivers 99.7%* specular reflectivity for maximum sunlight transfer
- Provides the purest color rendition possible so colors are truer, brighter
- Allows for amazing run lengths up to 100 feet for optimal placement
- Comes with pre-punched rivet holes to ensure consistent tube diameter
Deliver
Engineered Light Diffusion
Optical lenses and lighting control options combine to:
- Create a location-specific, controlled visual effect to meet your illumination need
- Reduce glare for greater visual comfort
- Deliver superior diffusion
Standard Components
Optional Components
Outer Dome
The Outer Dome is made of high-impact polycarbonate and filters out harmful UV rays.
Curb Cap Flashing System
The flashing features a curb cap that uses R-6 rigid insulation. All joints come pre-sealed. The cap assembly includes the Dome Edge Protection Band to achieve a rooftop fire rating.
Tube Belt
The Tube Belt cinches the tube connection to prevent gaps and provide a tapeless, self-sealing joint.
Extension Tubes
Extension tubes feature a revolutionary Tab-Lock Connection System with Tube Belts that eliminate the need for screws and tape. Tubes come in 24 in. and 48 in. lengths.
Diffuser Assembly
Prismatic Diffuser comes pre-assembled and easily attaches to extension tubes using the patented Tab-Lock Connection System and Tube Belts. The circular shape is designed for open ceiling applications.
Inner Dome
The Inner Dome can be added as a pre-installed option to improve thermal performance.
Security Guard
The optional Security Guard comes pre-installed and consists of a stainless steel wire grid that inserts into the flashing turret across the diameter of the opening
PRODUCT OPTIONS
SkyVault M74 DS
The SkyVault Series is a line of modular, high output tubular daylighting devices that deliver massive amounts of daylight to large volume spaces with high ceilings.
The Solatube M74 DS is the core of the SkyVault Series, and is available with the following pre-assembled configurations:
- Single-glaze dome assembly
- Single-glaze dome assembly with security guard
- Double-glaze dome assembly
- Double-glaze dome assembly with security guard
Tube size ≈ 29 in. (74 cm)
Potential tube length ≈ 100 ft. (30 m)
Applications
- Airports
- Convention centers
- Lobbies
- Warehouses
- Manufacturing facilities
- Retail centers
ACCESORRIES
Optional Security Guard
The optional Security Guard comes pre-installed and consists of a stainless steel wire grid that inserts into the flashing turret across the diameter of the opening
Extension Tubes
Extension tubes feature a revolutionary Tab-Lock Connection System with Tube Belts that prevent gaps and eliminate the need for screws and tape. Tubes come in 24 in. and 48 in. lengths.
DIFFUSER OPTIONS
SkyVault Series Diffuser Assembly
SkyVault Series Diffuser Assemblies provide precise control over daylight collected by our optical domes and Spectralight Infinity Tubing. Each is factory-assembled to make field installation quick and easy.
The Prismatic Diffuser replicates the look and style of traditional troffers. The assembly comes pre-assembled and easily attaches to extension tubes using the patented Tab-Lock Connection System and Tube Belts. The circular shape is designed for open ceiling applications.
